CSD
011-012-013
CSD011E | CSD012E | CSD031E | |
---|---|---|---|
Tray capacity | 1 GN1/1 h max 150 | 2 GN1/1 h max 150 | 3 GN1/1 h max 150 |
Product capacity | 6 Kg | 12 Kg | 18 Kg |
Dimensions mm | 660x595x310 h | 660x595x520 h | 660x595x730 h |
Weight | 31 Kg | 48 Kg | 67 Kg |
Electric power | 700W | 1000W | 1000W |
Power supply | AC 220-240V 50/60Hz | AC 220-240V 50/60Hz | AC 220-240V 50/60Hz |
Spec sheet | Download | Download | Download |
CSD001E | CSD002E | CSD003E | |
---|---|---|---|
Tray capacity | 1 GN1/1 h max 150 | 2 GN1/1 h max 150 | 3 GN1/1 h max 150 |
Product capacity | 6 Kg | 12 Kg | 18 Kg |
Dimensions mm | 450x660x310 h | 450x660x520 h | 450x660x730 h |
Weight | 22 Kg | 40 Kg | 60 Kg |
Electric power | 700W | 1000W | 1000W |
Power supply | AC 220-240V 50/60Hz | AC 220-240V 50/60Hz | AC 220-240V 50/60Hz |
Spec sheet | Download | Download | Download |

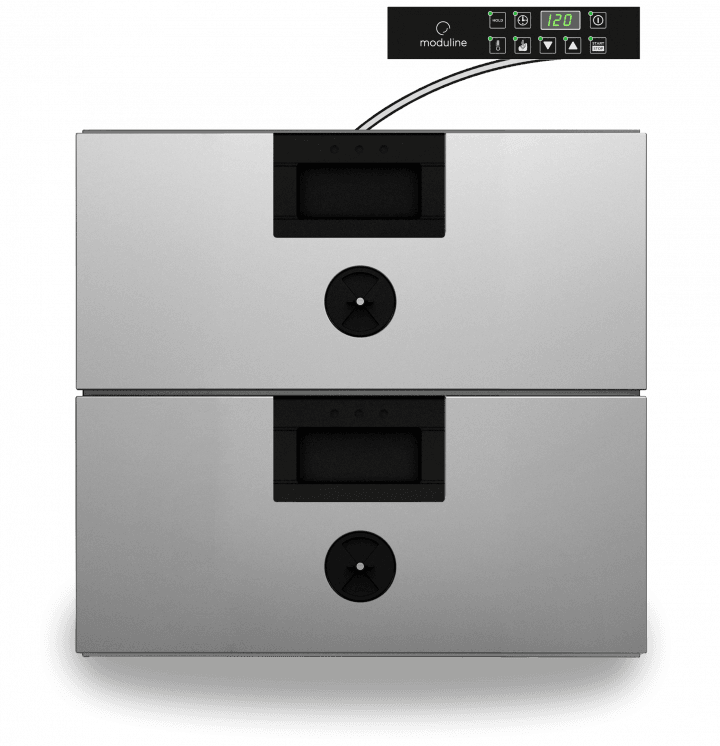

'R' BUILT-IN + REMOTE CONTROL | CSD002ER | CSD012ER |
---|---|---|
Tray capacity | 2 GN1/1 h max 150 | 2 GN1/1 h max 150 |
Product capacity | 12 Kg | 12 Kg |
Dimensions mm | 450x660x440 h | 660x595x440 h |
Weight | 40 Kg | 48 Kg |
Electric power | 1000W | 1000W |
Power supply | AC 220-240V 50/60Hz | AC 220-240V 50/60Hz |
Spec sheet | Download | Download |

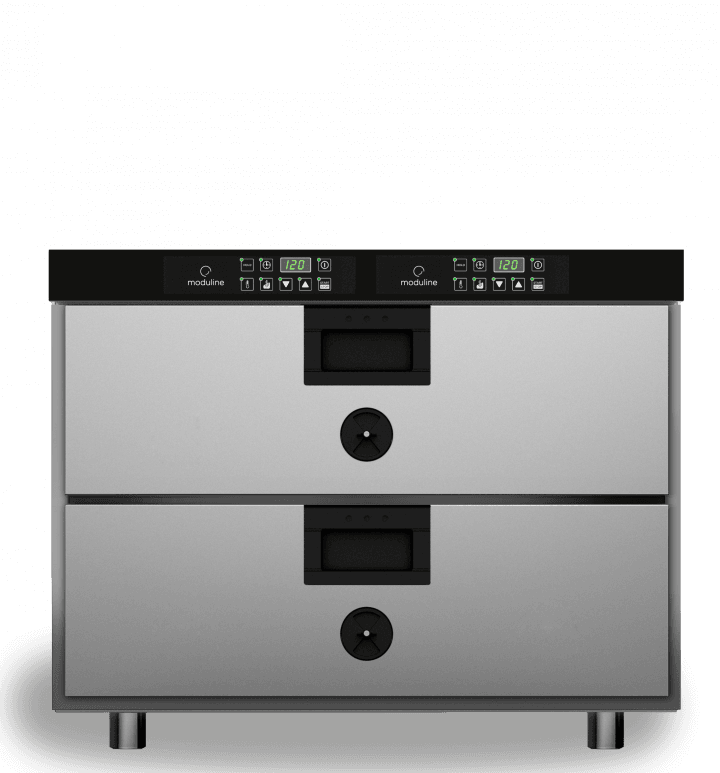

MULTI TEMPERATURE | CSD212E | CSD313E |
---|---|---|
Version | Two separately controlled cavities. 2 core probes | Three separately controlled cavities. 3 core probes |
Tray capacity | 2 GN1/1 h max 150 | 3 GN1/1 h max 150 |
Product capacity | 12 Kg | 18 Kg |
Dimensions mm | 705x680x610 h | 705x680x835 h |
Weight | 67 Kg | 100 Kg |
Electric power | 1400W | 2100W |
Power supply | AC 220-240V 50/60Hz | AC 220-240V 50/60Hz |
Spec sheet | Download | Download |
