The robust flavour of smoking, both hot and at room temperature
To complete the Cook&Hold range, Moduline introduces Smoker, a line of low-temperature ovens that come with an external electric smoker.
The robust flavour of low-temperature cooking

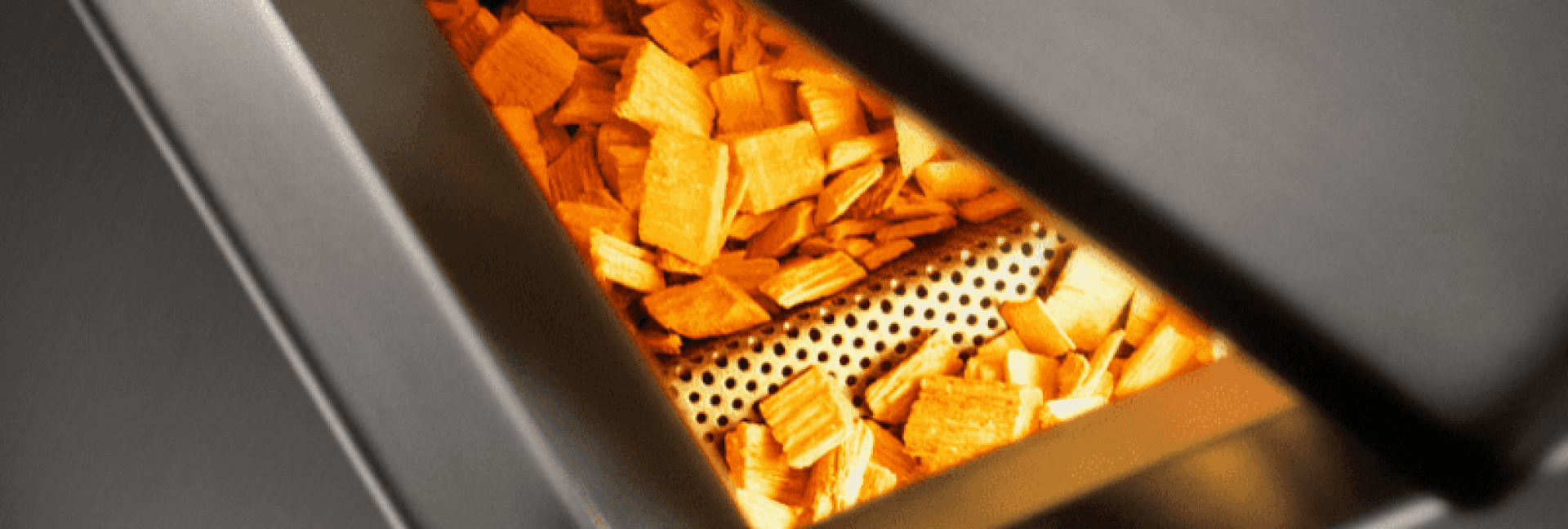

- The electric smoke generator is external and can be connected to the appliance's roof wiring. Smoke enters the firing chamber through a vacuum air circuit (patented using the Venturi System). The generator burns dry wood chips (supplied as an accessory) to produce the smoke, which can enter the chamber through the connecting duct regardless of whether food is being cooked.
- The smoke generator is completely detachable for inspection and cleaning, which can be done in a dishwasher.
- Via the touch screen, smoking can be programmed to three levels: soft, medium, and hard. This programming can be performed without starting the cooking cavity heating or in combination with low-temperature cooking.
- The Deliwarm system maintains a constant temperature in the cavity during cooking and holding phases, thanks to gentle heat without forced ventilation.
- The electronic control is intuitive and easy to use, even by less experienced personnel (color touch display).
- The inner glass of the door can be opened, allowing constant and more thorough cleaning of the door.
- The door handle is ergonomic and snap-lockable.
- Internal lighting of the cooking cavity allows the user to keep all cooking stages under control at all times, thanks to this standard feature and the low heat-emitting glass.
- The standard USB port allows you to update the oven software, upload and download recipes to and from other ovens, and extract all HACCP data saved in the memory for 30 days. The HACCP function records all parameters in the various cooking cycles.
- The tray racks are easy to remove and wash.
- The multipoint-reading core probe has an ergonomic handle and is very durable, making it suitable for frequent and heavy use.
- The absence of ventilation prevents the product from drying out, eliminating the need to add moisture in the cooking chamber and avoiding water consumption.
- The watertight cavity has rounded corners, making cleaning easy and safe.
- The Watertight Cavity has rounded corners, making cleaning easy and safe.
- Low power and perfect temperature control ensure minimal electricity consumption.
- The perimeter bumpers are made of plastic, and the trolleys are equipped with four wheels with a diameter of 150mm. Two of these are swiveling and also equipped with brakes to ensure full mobility (CHS). A pair of side handles for pushing and driving (CHS) completes the standard equipment.
- The condensate drip tray is built into the door and connected to either the oven drain or the rear drain of the washing system (on CHS models only).

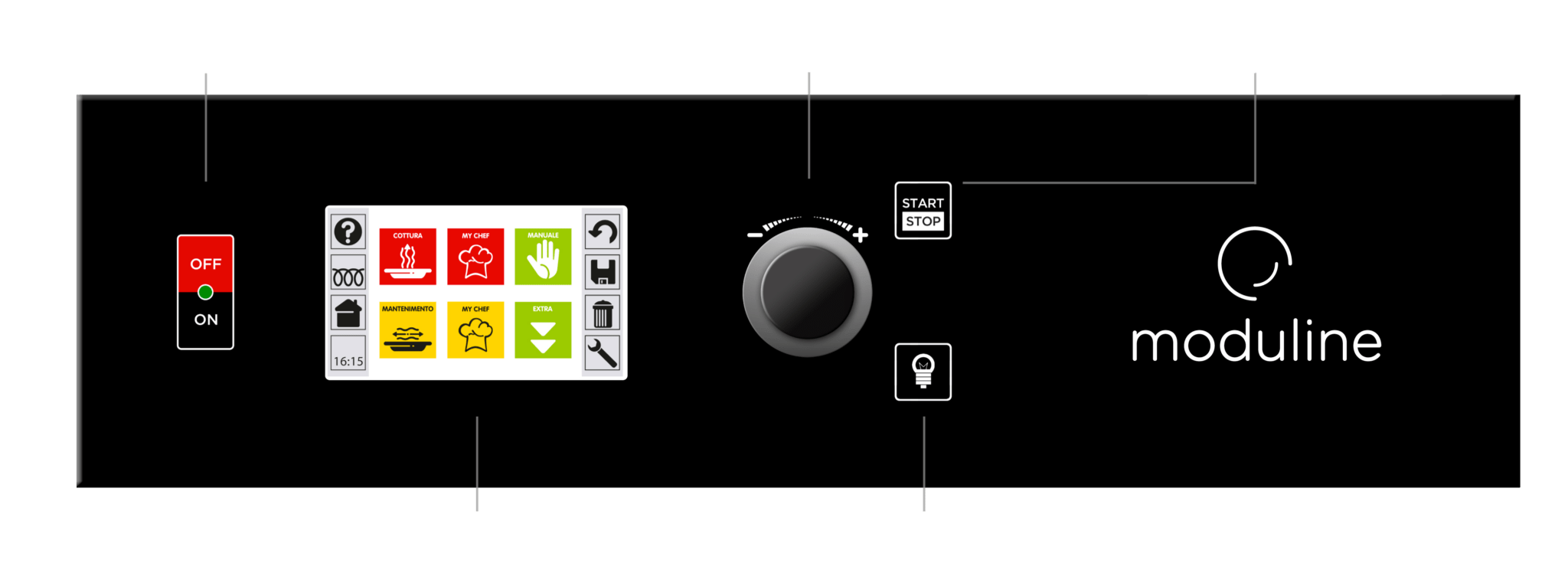

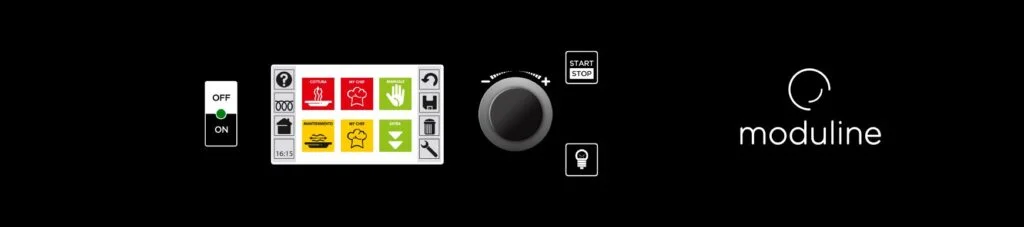

Control panel version
CHS-FAB
Functions
- Operating temperature +30°C to +160°C
- Time control
- Automatic cooking programs divided into six categories
- Favourite programs section
Cooking Modes
- Possibility to manage up to nine firing steps per program
- Timed cooking
- Cooking with core probe
- Cooking mode with Delta-T
Special Functions
- Smoking (on CHS-FAB models)
- ProTime
- PadLock
- CoreCheck
- Ecowash (optional)
Extras
Self-diagnosis system
This function is designed to check the proper functioning of all electrical components.
The drainage system for cooking juices
This function eliminates the need for drip pans inside the cavity and reduces the handling of hot liquids. It is available only on models without ECOWASH.
PadLock
This function allows the chef to protect data with a password and avoid unintentional interruptions of the cooking program.
ProTime
This function allows you to preheat the oven or start a cooking program at a specific date and time.
Corecheck
The CoreCheck system verifies that the desired core temperature has been reached. Up to 30 different cooking temperatures can be recorded and saved in the HACCP data.
Ecowash
The optional ECOWASH washing system automatically cleans the cooking cavity with four different programs. This option requires a water supply connection and a drain for dirty water. It eliminates the front drain for cooking juices, which must then be collected in a pan placed in the cooking cavity on the bottom level of the oven.
